Pan Glory

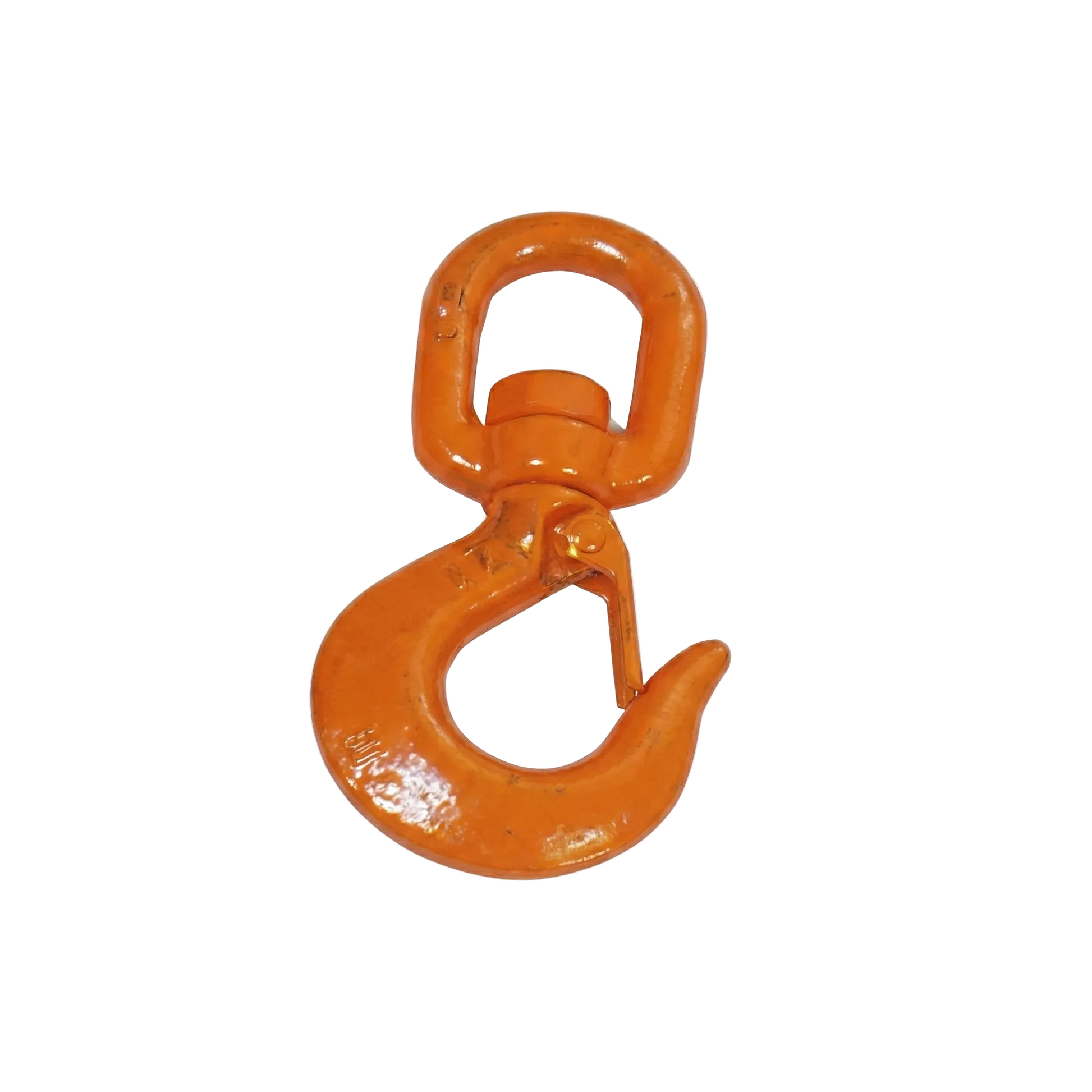

Grade 80 Forged Hook
Grade 80 Forged Hook
Grade 80 Forged Hook with 4 to 1 Safety Factor
Engineered for rigorous industrial applications our Grade 80 Forged Hook delivers a reliable 4 to 1 safety factor for overhead lifting. Manufactured from high-strength alloy steel this hook provides maximum Working Load Limits ranging from 1.2T to 12.5T ensuring secure connections for your crane and hoist operations.
Performance Standard
| Material | Grade 80 Alloy Steel |
| Safety Factor | 4 to 1 (B / S = 4 x WLL) |
| Application | Overhead Lifting |
Selection Matrix
| Chain Size | WLL (Ton) | Breaking Strength (Ton) |
| 1/4 Inch (6mm) | 1.2 | 5 |
| 5/16 Inch (8mm) | 2 | 8 |
| 3/8 Inch (10mm) | 3.2 | 12.8 |
| 1/2 Inch (13mm) | 5.4 | 21.6 |
| 5/8 Inch (16mm) | 8.2 | 32.8 |
| 3/4 Inch (19mm) | 12.5 | 50 |
- High-Strength Construction: Forged from premium Grade 80 alloy steel for exceptional durability and impact resistance in heavy-duty lifting.
- Verified Safety Factor: Strictly proof-tested to guarantee a 4 to 1 breaking strength to working load limit ratio for overhead lifting compliance.
- Seamless Integration: Features a color-coded finish to match your existing G80 rigging hardware system safely and efficiently.
