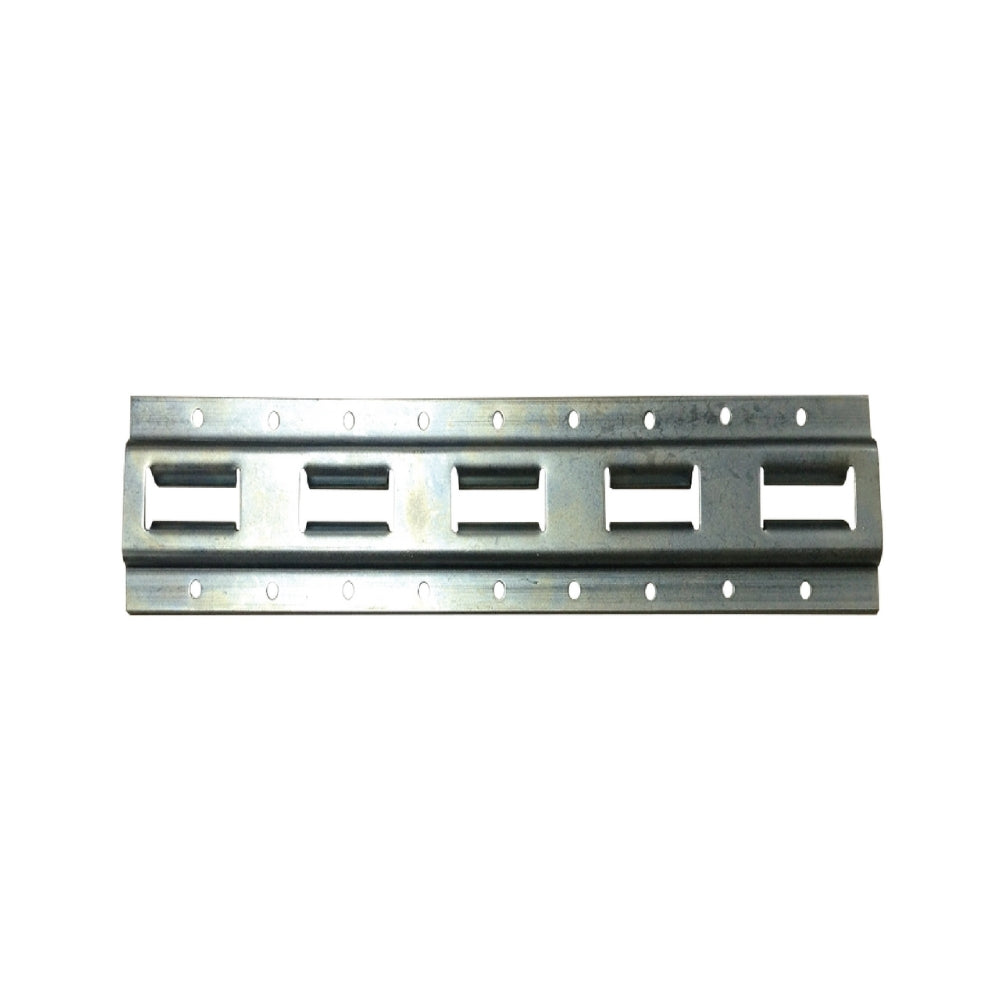

Vertical E-Track

Length: 4'
Finish: Galvanized
SKU: VR16-4VG

Length: 4'
Finish: Painted Grey
SKU: VR16-4VB

Length: 8'
Finish: Galvanized
SKU: VR16-8VG

Length: 8'
Finish: Painted Grey
SKU: VR16-8VB

Length: 10'
Finish: Galvanized
SKU: VR16-10VG

Length: 10'
Finish: Painted Grey
SKU: VR16-10VB

Finish Options: Available in Galvanized, Painted (Green/Grey), and Raw finishes. Stainless Steel and Aluminum tracks are also available upon request.

Vertical Slot Configuration: Unlike horizontal track, the slots on this rail run parallel to the length of the track. This orientation is specifically engineered to support shoring bars and decking beams at precise height increments.

Shoring & Decking Specialist: The primary choice for creating second-level decks or securing tall cargo against walls. The vertical adjustment points allow you to position shoring bars exactly where needed to prevent freight from tipping.

Heavy-Duty Construction: Roll-formed from high-strength 12-Gauge (2.5mm) steel, providing exceptional structural rigidity and a high working load limit for commercial transport applications.

System Compatibility: Fully compatible with all standard Series E and Series A end fittings, deck/shoring beams, and spring-loaded logistic bars.

Corrosion Protection: Offered in Galvanized for maximum weather resistance or Grey Powder Coat for a professional interior finish.
