Pan Glory

Angled & Offset Plate Curtain Roller

Angled & Offset Plate Curtain Roller

Bracket Geometry

GET A QUOTE INQUIRE NOW

Offset and Angled Plate Curtain Rollers

SKU Plate Design Wheel Material Roller Height (mm) Finish

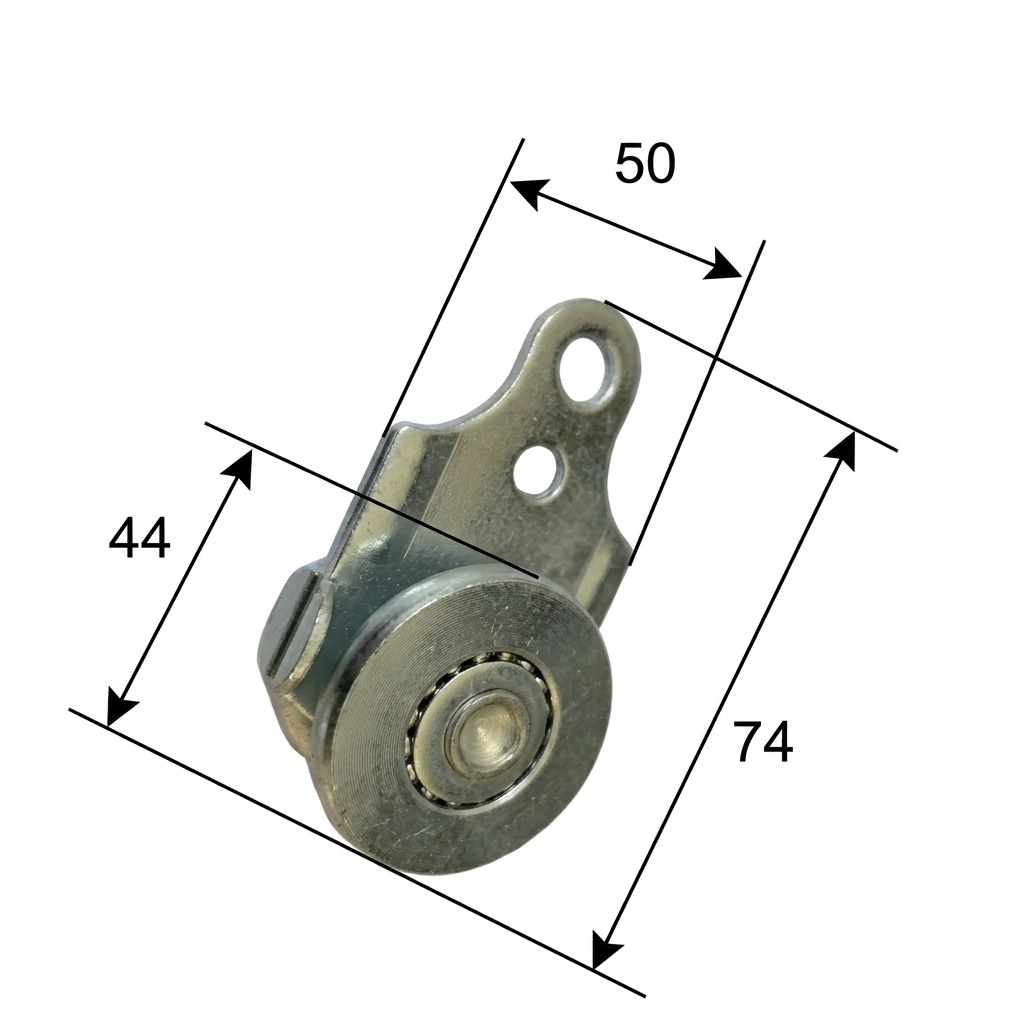

A20904 Teardrop Offset Steel Zinc 33 Zinc Plated

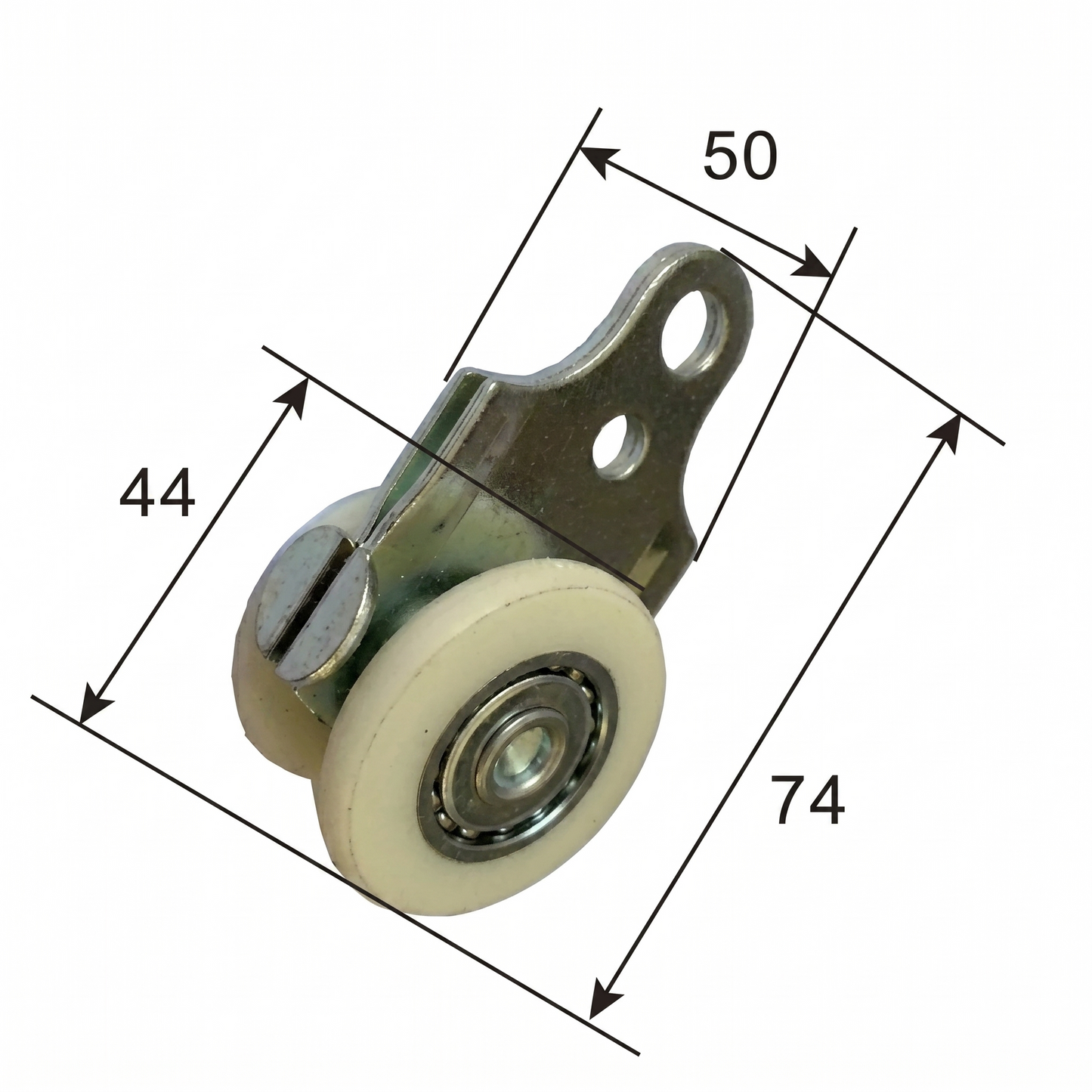

A20904N Teardrop Offset Nylon 33 Zinc Plated

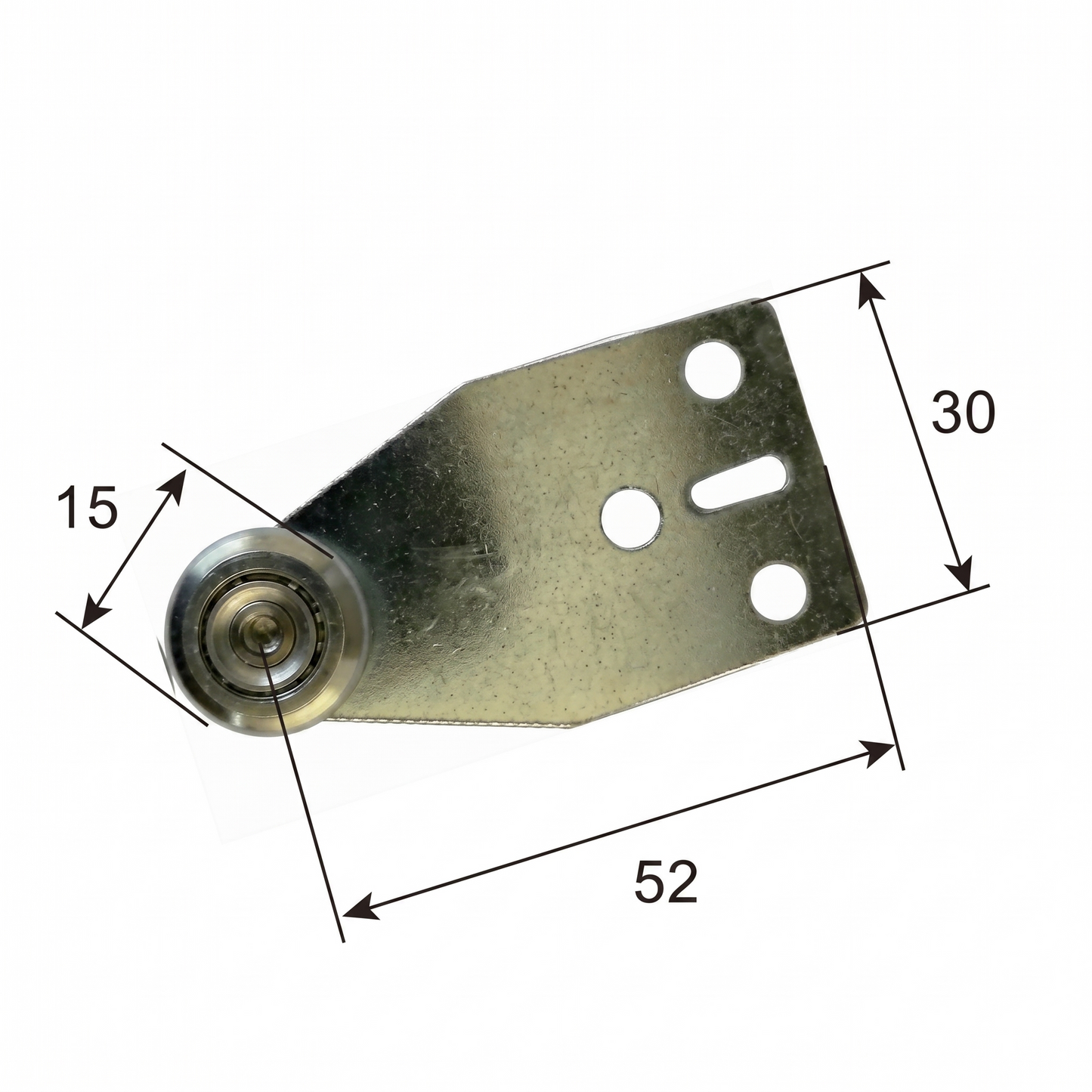

A20913 Short Angled Steel Zinc 19 Zinc Plated

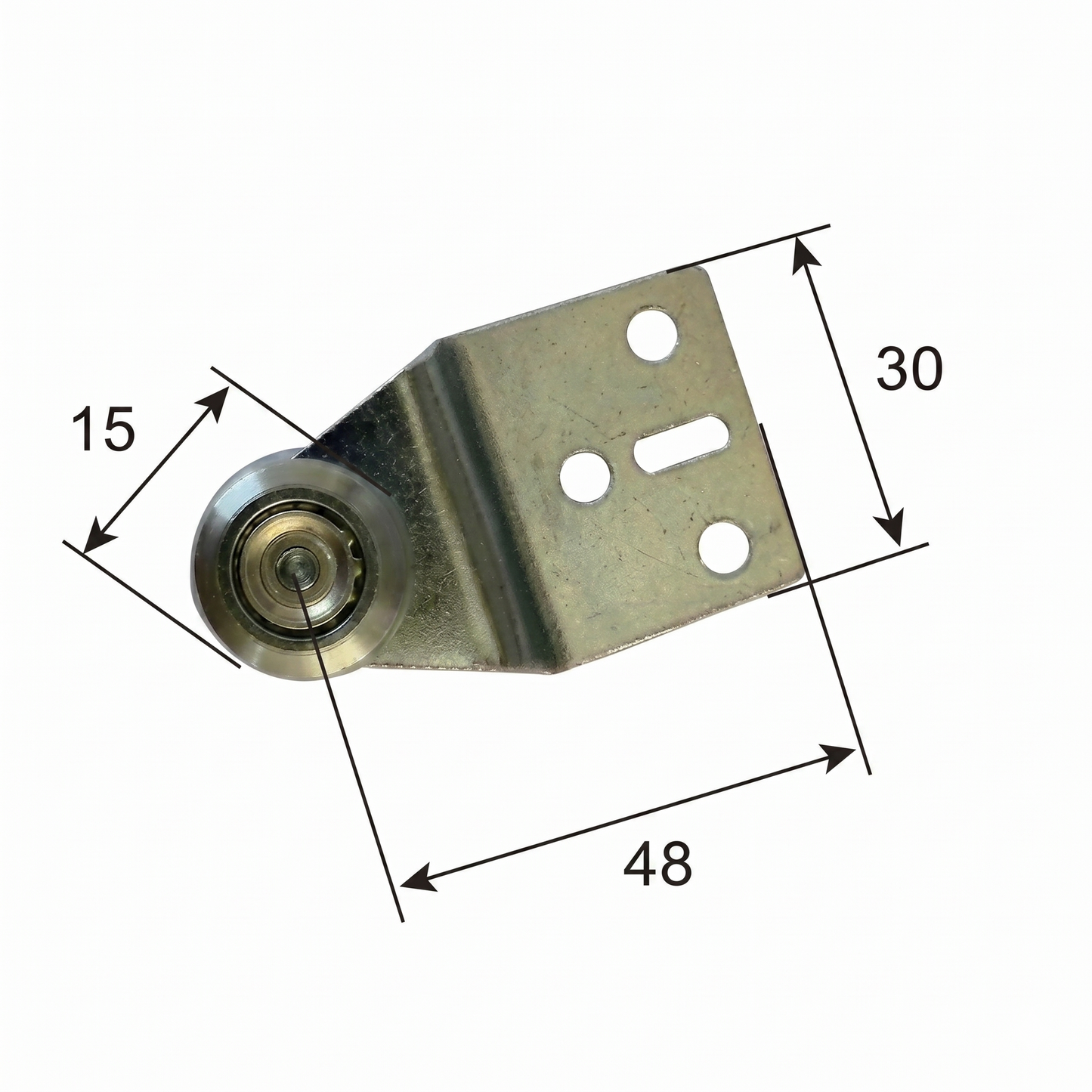

A20913B Short Angled Steel Zinc 19 Zinc Plated

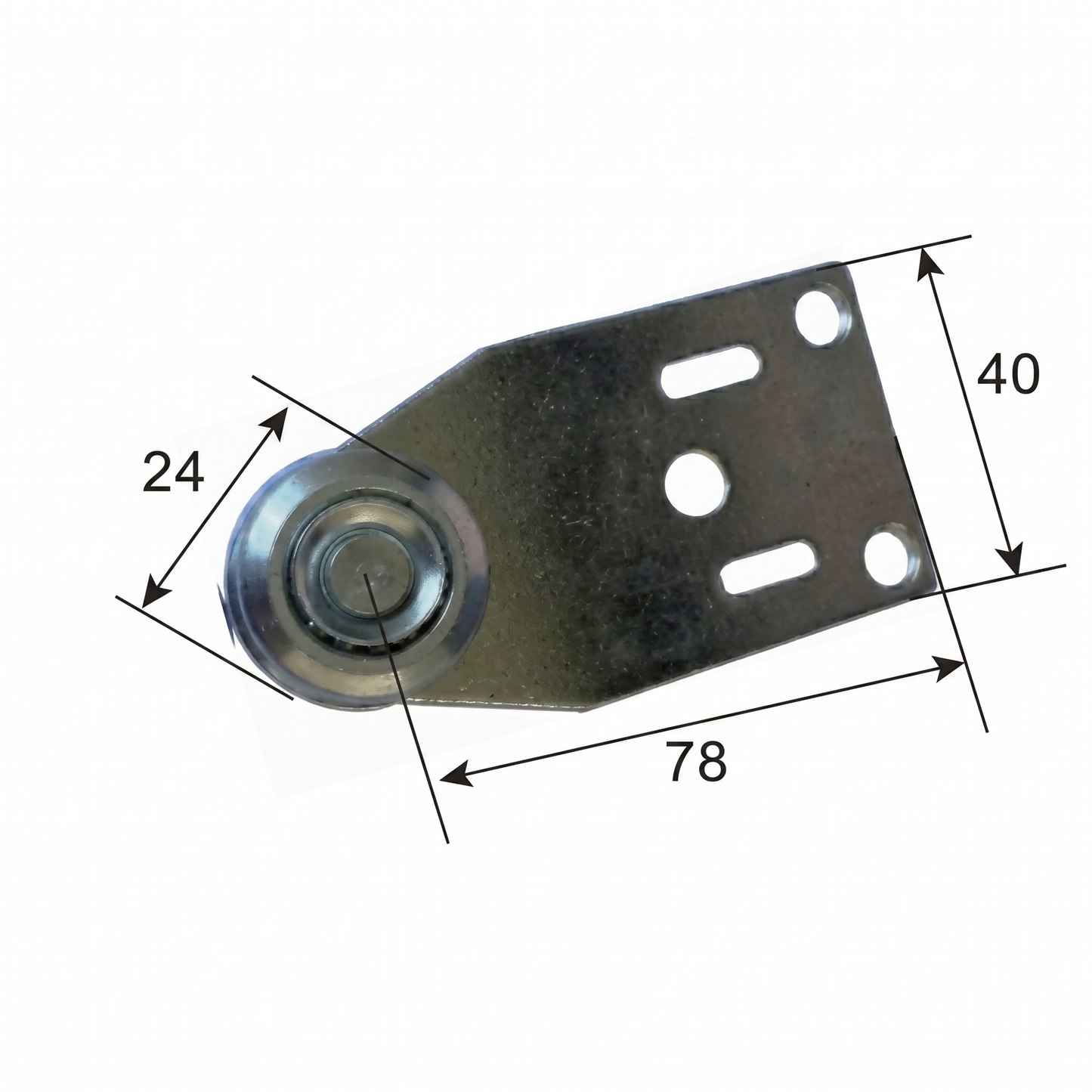

A20914 Long Offset Steel Zinc 26.5 Zinc Plated

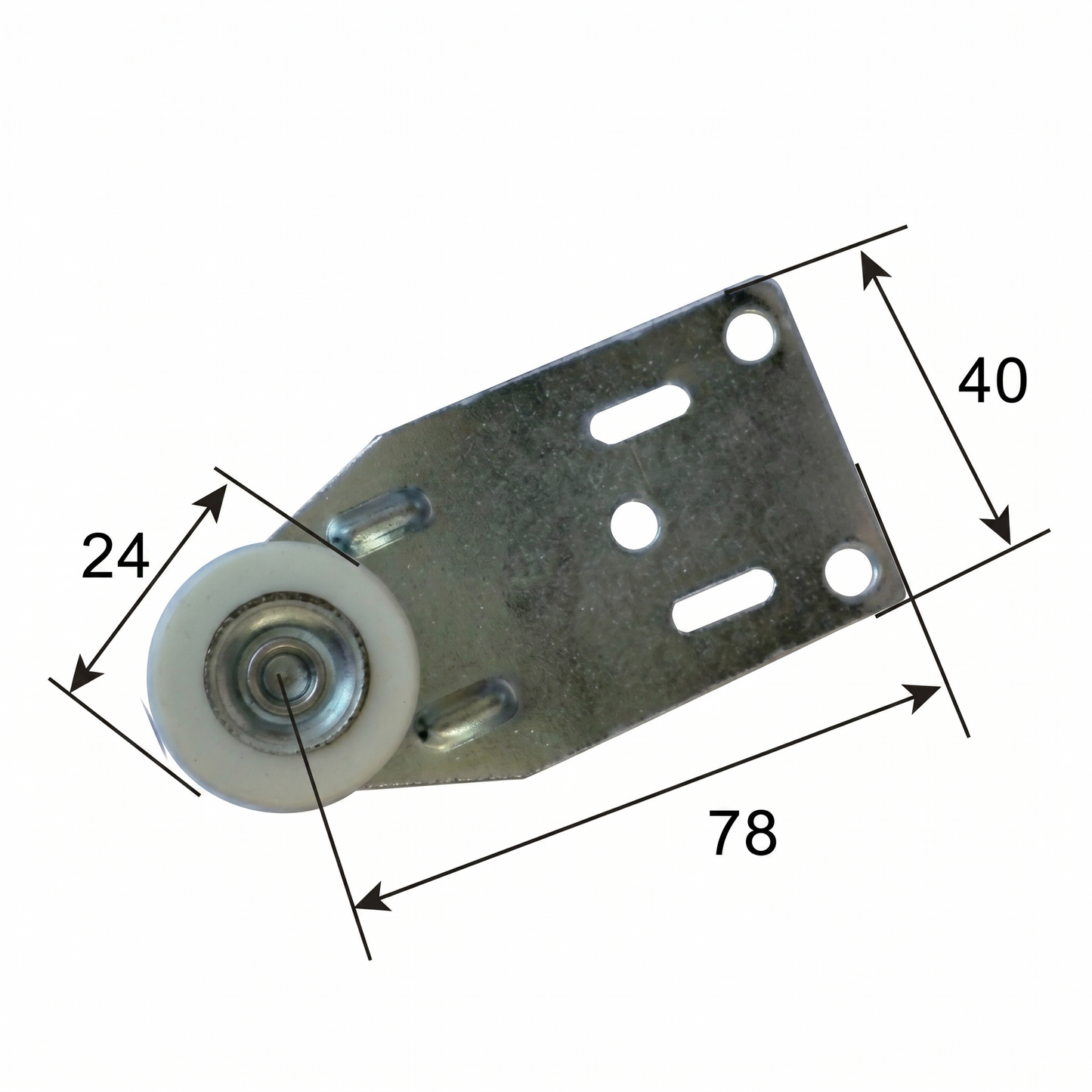

A20914N Long Offset Nylon 26.5 Zinc Plated

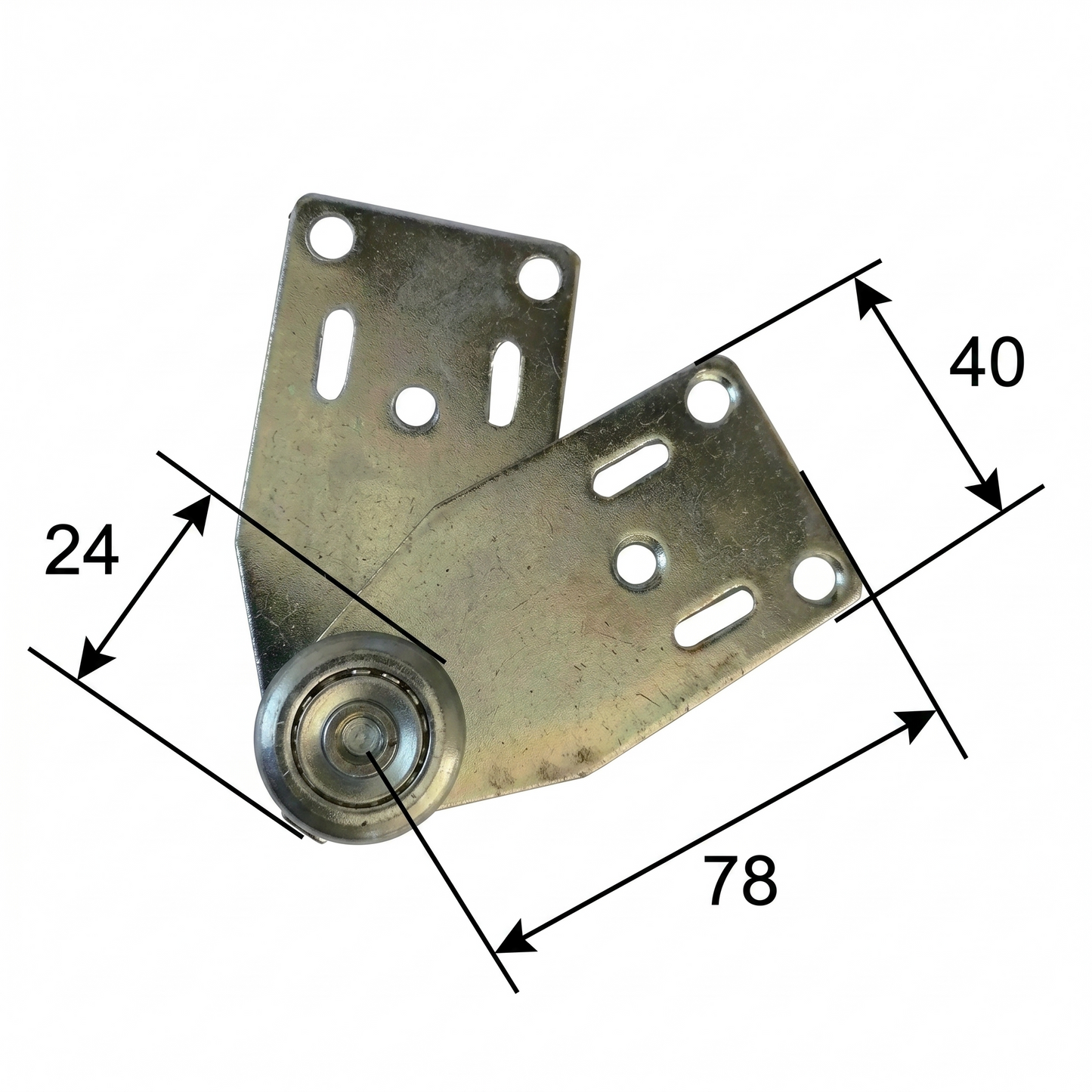

A20914T Offset T-Style Steel Zinc 26.5 Zinc Plated

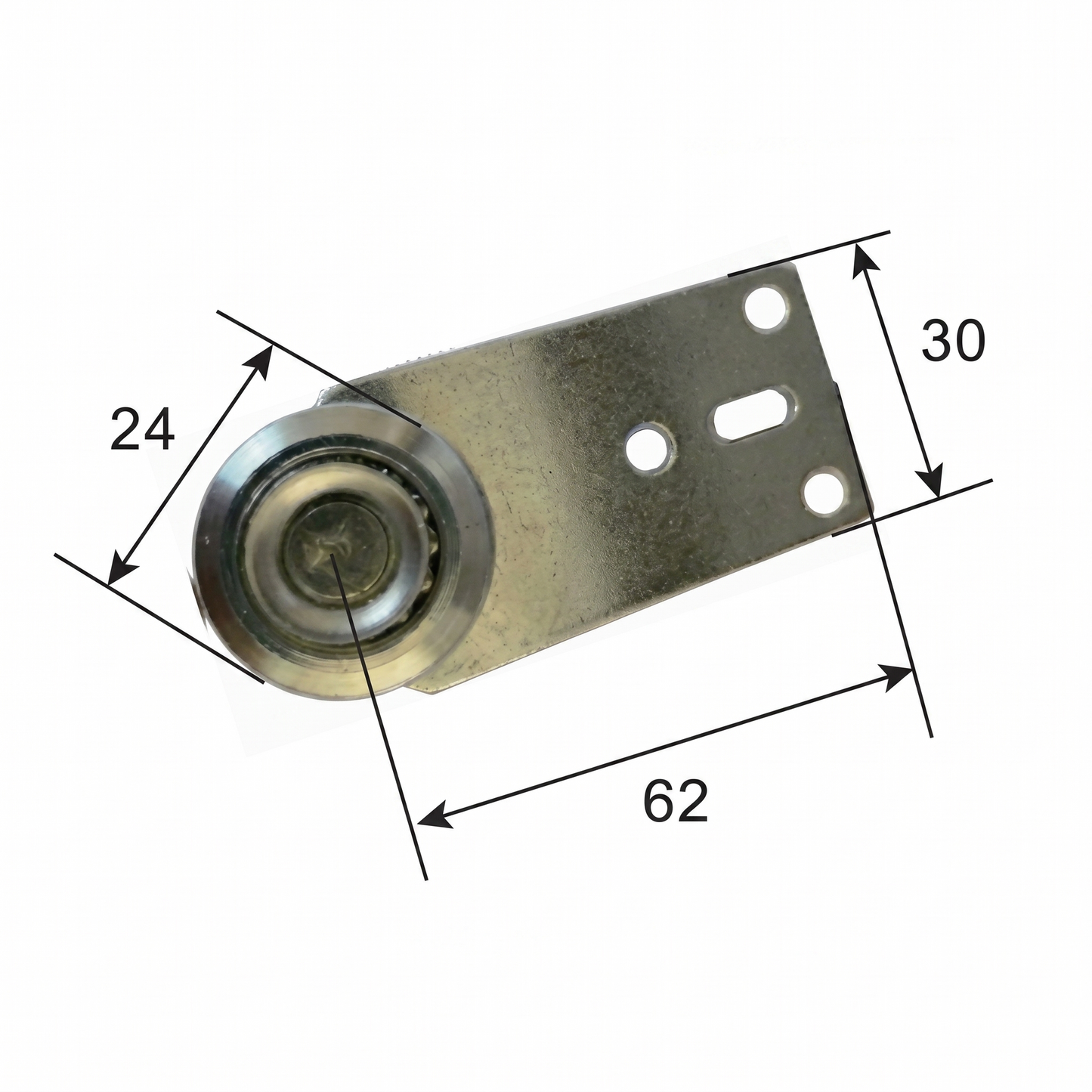

A20926 Medium Angled Steel Zinc 26.5 Zinc Plated
  • Offset Geometry: Perfect for trailers with restricted track clearances or specialized curtain hems.
  • Precision Angled Bracket: Ensures proper alignment where standard straight straps fail.
  • Smooth Tracking: High-quality wheels glide effortlessly inside commercial tracks.
  • Corrosion Resistant: Zinc-plated finish provides excellent protection against the elements.
  • Multiple Profiles: Choose from teardrop, short angled, or long offset designs.
