How to Thread a Strap through Ratchet: A Step-by-Step Guide

Properly threading your tie-down straps through ratchet and cam buckles is fundamental to safe and secure load transportation. Doing it incorrectly can lead to strap slippage, damaged cargo, or even dangerous accidents on the road. This guide will walk you through the correct methods for both types of buckles, ensuring your loads stay put.

Threading a Ratchet Buckle

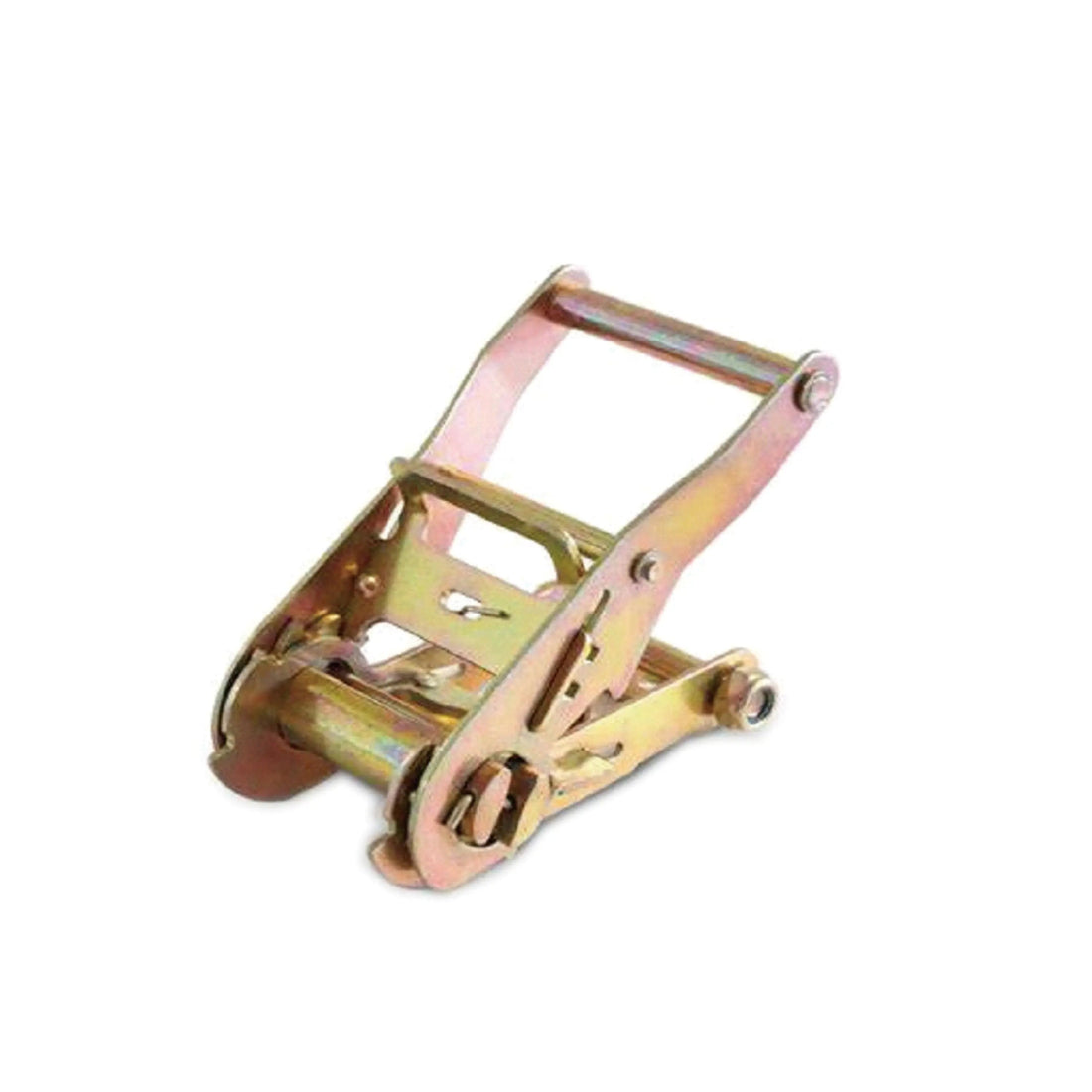

Ratchet buckles provide powerful mechanical advantage for securing heavy loads. Follow these steps:

1. Identify Components: Locate the Ratchet Arm (the moving handle part), the Spool or Spindle (central cylinder the webbing wraps around), and the Release Lever.

2. Initial Feed: Take the FREE END of the strap. Feed it UPWARDS through the gap UNDERNEATH the Ratchet Arm (the space between the arm and the base frame). Pull several inches through.

3. Wrap the Spool: Bring the free end OVER the top of the Spool and then DOWN behind it (towards the base frame).

4. Final Feed & Pull Tight: Feed the free end UP through the gap BETWEEN the Spool and the Ratchet Arm itself (this is often a narrow slot). Pull the free end firmly to take up initial slack in the strap loop around your load. The strap should now form a secure "S" path through the ratchet mechanism.

5. Tensioning: Begin operating the ratchet handle. It will engage the spool, pulling more webbing through and tightening the strap around your load with each pump of the handle. Continue until desired tension is achieved.

6. Locking: Ensure the ratchet arm fully engages in the locked-down position. Engage any safety latches if present.
